Felix Touchte Codjo - Electronic Logbook

Example of code to filter hipo files

Lognumber 10.

Submitted on Sun, 27 Jul 2025 - 02:56:37 CEST

Marker:

Send to:

I read the hipo-utils code. I used the coat-libs-13.1.0.jar library; I took example of the filter code to add my own constraints. That works! In this peace of code, I used a small constraint: the value of the event number. I advice to read this code as example for more complex features: remove bank, ... I wanted to speed up, so I may have copied unnecessary piece of code. Download coat-libs-13.1.0.jar Run


	java -cp coat-libs-13.1.0.jar Main.java



/*
 * Inspired by https://code.jlab.org/hallb/clas12/coatjava/jnp/-/blob/master/jnp-hipo4/src/main/java/org/jlab/jnp/hipo4/utils/HipoUtilities.java?ref_type=heads
 *
 * For the moment, the output file is out.hipo
 */

import java.io.Console;
import java.io.File;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Collections;
import java.util.List;
import org.jlab.jnp.hipo4.data.Bank;
import org.jlab.jnp.hipo4.data.Event;
import org.jlab.jnp.hipo4.data.Schema;
import org.jlab.jnp.hipo4.data.SchemaFactory;
import org.jlab.jnp.hipo4.io.HipoChain;
import org.jlab.jnp.hipo4.io.HipoReader;
import org.jlab.jnp.hipo4.io.HipoWriter;
import org.jlab.jnp.hipo4.io.HipoWriterSorted;
import org.jlab.jnp.utils.benchmark.Benchmark;
import org.jlab.jnp.utils.benchmark.ProgressPrintout;
import org.jlab.jnp.utils.data.ArrayUtils;
import org.jlab.jnp.utils.options.OptionStore;
import org.jlab.jnp.utils.file.FileUtils;


public class Main {
	public static void main(String[] args) {
		System.out.println("Test: coat-libs-13.1.0.jar");
		String filename = "/home/touchte-codjo/Desktop/hipofiles/occupancy/rec_clas_022435.evio.00003.hipo";
		HipoReader reader = new HipoReader();
		reader.open(filename);
		Event event = new Event();
		// pre start (to be understood)
		SchemaFactory factory = reader.getSchemaFactory();
		HipoWriterSorted writer = new HipoWriterSorted();
		List   schemaList   = factory.getSchemaList();
	        List     schemaBanks  = new ArrayList();
		for (Schema schema : schemaList){
			schemaBanks.add(new Bank(schema));
		}
	        for(Schema schema : schemaList){
                	writer.getSchemaFactory().addSchema(schema);
        	}
		// start (to be understood)
		writer.open("out.hipo");
	        reader.close();
		Event   inputEvent = new Event();
		Event   outEvent   = new Event();
		ProgressPrintout progress = new ProgressPrintout();
		// only one file
		HipoReader ir = new HipoReader();
		ir.open(filename);
		System.out.println("****>>>> openning file : " + filename);
		int counter = 0;
		System.out.println("--> number of events = " + ir.getEventCount());
		Bank runConfigBank = new Bank(reader.getSchemaFactory().getSchema("RUN::config"));
		while(ir.hasNext()==true){
			outEvent.reset();
			ir.nextEvent(inputEvent);
			// my filter
			inputEvent.read(runConfigBank);
			int event_number = runConfigBank.getInt("event", 0);
			System.out.println("event number : " + event_number );
			if (event_number == 172923) {
				// end my filter
				int tag = inputEvent.getEventTag();
				outEvent.setEventTag(tag);
				for(int b = 0; b < schemaBanks.size(); b++){
					inputEvent.read(schemaBanks.get(b));
					if (schemaBanks.get(b).getRows()>0) {
						outEvent.write(schemaBanks.get(b));
					}
				}
				counter++;
				writer.addEvent(outEvent,outEvent.getEventTag());
				progress.updateStatus();
			}
			if (counter > 10) {
				writer.close();
				return;
			}
			System.out.println("****>>>> processed events : " + counter);
		}
		writer.close();
	}
}

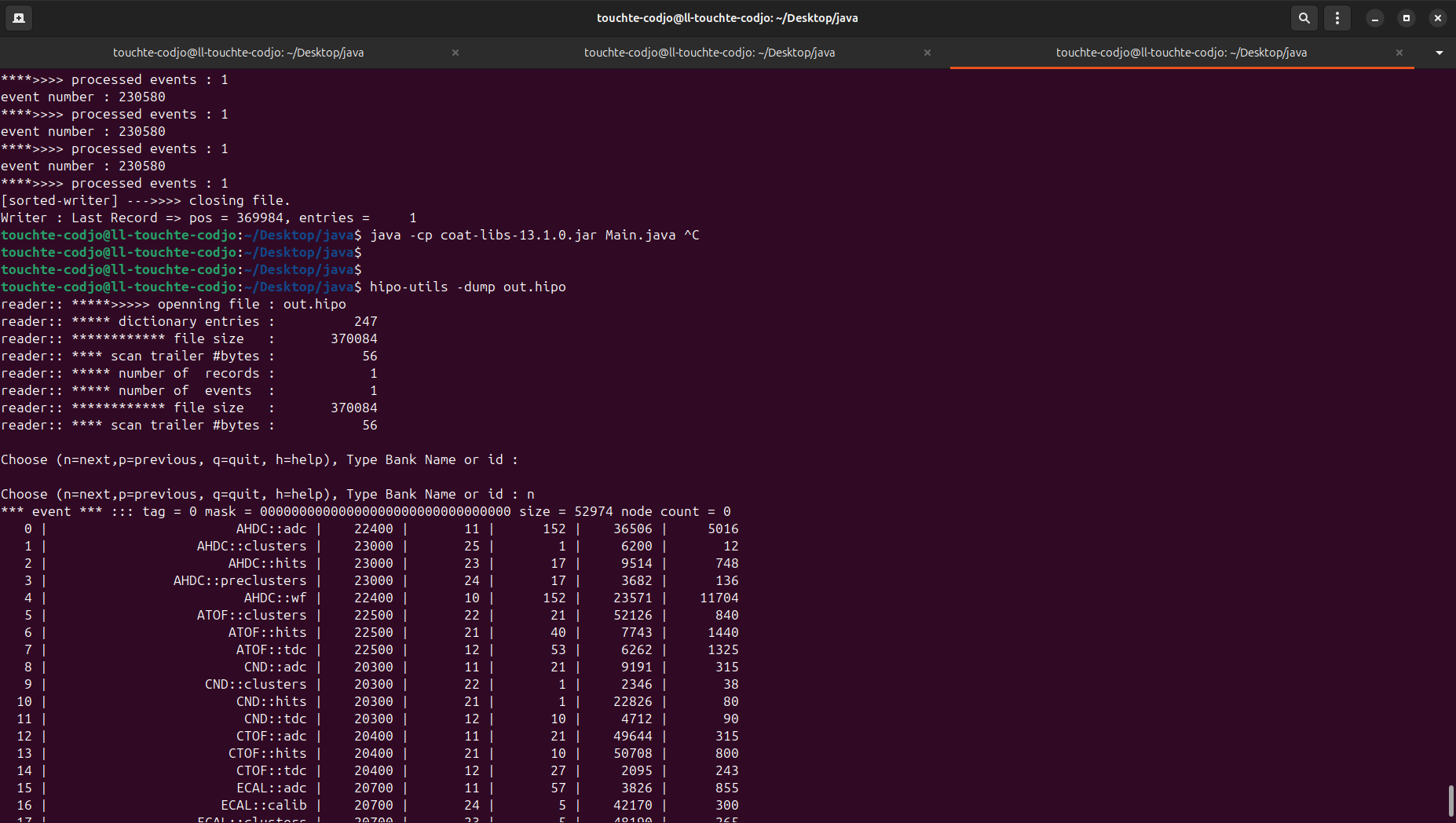

Attachments (1)

1.
